| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | TENGTIAN |
| Chứng nhận: | CE ISO9000 BV |
| Số mô hình: | HG60 |
| Attribute | Value |
|---|---|
| Machine Name | Precision Tube Mill 60mm Welded Pipe Mill Carbon Steel For Furniture Pipe |
| Product | Square pipe and round pipe |
| Feature | PLC control |
| Material | Carbon steel and galvanized steel |
| Other pipe | Rectangular pipe |
| Max size | 60mm |
| Thickness | 3.5mm |
| Length | 6-12m |
| Rollers | Included |
| Model | HG60 |

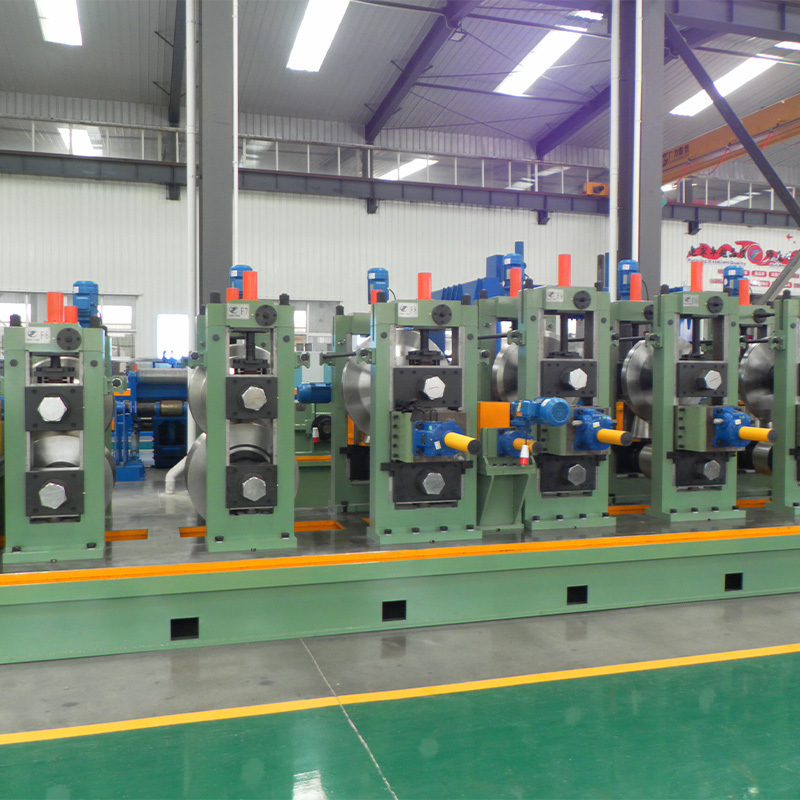

This machine is designed to produce high-quality welded steel pipes, including round pipe, square pipe, and deformed pipe. Featuring advanced roll pass design, the production line manufactures welded steel pipes with excellent machining quality and high precision assembly.
| Standard | International standard tube mill machine |
| Material | Galvanized steel |
| Mechanical properties | σb≤520Mpa, σs≤365MPa |
| Strip Width | 60-190mm |
| Strip Thickness | 1.35-3.5mm |
| Inner Diameter of Coils | Φ508mm |
| Outer Diameter of Coils | Φ1300～φ2000mm |
| Coil Weight | ≤5T |
| Pipe Diameter | Round pipe: 20-60mm Square pipe: 30×30-50×50mm |
| Thickness | 1.35-3.6mm |
| Length | 6-12m |
| Pipe-cutting Precision | 0-6mm |
| Forming Speed | Max 100m/min for 1mm thickness |
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
