Automatic Carbon Steel Tube Mill Machine 21-63mm Diameter

Automatic Carbon Steel Tube Mill Machine 21-63mm Diameter

Chi tiết sản phẩm:
Nguồn gốc: Hà Lan, Trung Quốc
Hàng hiệu: Tengtian
Chứng nhận: CE, ISO9001, BV
Số mô hình: HG60
Thông tin chi tiết
Nguồn gốc:
Hà Lan, Trung Quốc
Hàng hiệu:
Tengtian
Chứng nhận:
CE, ISO9001, BV
Số mô hình:
HG60
Tên sản phẩm:
Thép carbon tự động 21-63mm đường kính ống ống ống ống ống
Vật liệu:
Thép carbon, thép không gỉ, thép hợp kim thấp
Đường kính ống:
21 - 63mm
Tốc độ sản phẩm:
Tối đa 50m/phút
Max.thickness cho ống vuông:
0,8-3,0mm
certification:
CE ISO
Gearing Worm:
Tối đa.80m/phút
Từ khóa:
Máy nghiền ống có đường kính 21-63mm bằng thép carbon
Làm nổi bật:

High Light

Làm nổi bật:

automatic carbon steel tube mill

,

tube mill machine 21-63mm diameter

,

carbon steel tube mill machine

Thông tin giao dịch
Số lượng đặt hàng tối thiểu:
1 bộ
Giá bán:
$100000 to $1 million
chi tiết đóng gói:
Xuất khẩu không thấm nước và đóng gói biển.
Thời gian giao hàng:
3,5 tháng
Điều khoản thanh toán:
L/C, T/T, Liên minh phương Tây
Khả năng cung cấp:
70 bộ mỗi năm
Mô tả sản phẩm
Automatic Carbon Steel 21-63mm Diameter Tube Mill Machine
Product Attributes
Material Carbon steel, Stainless steel, Low alloy steel
Pipe Diameter 21 - 63mm
Product Speed Max 50m/min
Max.Thickness for Square Pipe 0.8-3.0mm
Certification CE ISO
Worm Gearing Max.80m/min
Product Description

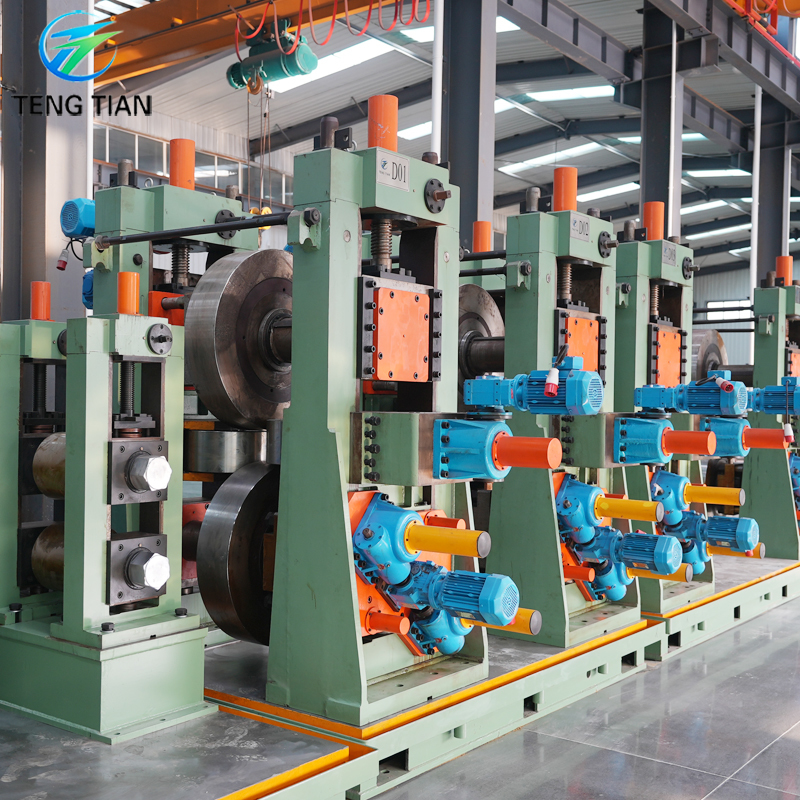

Automatic Carbon Steel Tube Mill Machine 21-63mm Diameter 0
High-frequency pipe welded machinery is the special equipment to produce welded pipe of low carbon steel or low alloy steel material. The process involves feeding steel belt into the machinery, turning it into tube by forming roller, then using high-frequency proximity effect and skin effect to reach welding temperature. The welding is completed under squeezing roller extrusion, then through cooling, sizing and straightening to get the required steel pipe.
Technical Process
  • Uncoiler
  • Straightening end
  • Pipe straightener
  • Shear & Welder
  • Storage
  • Forming, H.F. welding
  • Sizing mill
  • Flying saw
  • Pipe straightener used for original pipe
  • Flatter
  • Hydraulic or scateless test equipment
  • Roller conveyor and conveyor table
  • Packing device
  • Electric control system
Specifications
Automatic Carbon Steel Tube Mill Machine 21-63mm Diameter 1
Model Diameter(mm) Thickness(mm) Speed(m/min) Main power(kw) HF welder(KW) Area(m²)
HG32 10-32 0.4-1.5 30-100 250 100 12x100
HG50 12-50 0.6-2.5 30-90 300 150 12x100
HG76 12-76 1-3 30-90 320 200 12x100
HG89 32-89 1-4 30-80 350 300 12x100
HG114 45-114 1.5-5.0 30-60 400 300 12x100
HG165 60-165 3-7 30-50 600 400 12x100
HG219 114-219 4-8 20-40 800 500 15x150
HG273 114-273 4-10 15-30 1000 600 18x160
HG325 165-325 4-10 10-30 1200 600 12x100
HG426 165-426 4-12.7 8-25 1400 800 12x100
HG508 219-508 4-16 8-20 2000 1000 12x100
Product Gallery
Frequently Asked Questions
Q1: Are you manufacturer or trading company?
A1: We are manufacturer with more than 20 years experience.
Q2: What is the max size of pipe you have ever produced?
A2: Maximum φ630mm
Q3: Can I visit your customer machine line?
A3: Yes, but we need to get agreement from our customer first.
Q4: What is your machine advantages?
A4: Full automatic, Direct forming square, Share rollers, Fast change system
Q5: How I can get the quotation?
A5: Please send your requirements of pipe size and thickness to us.
